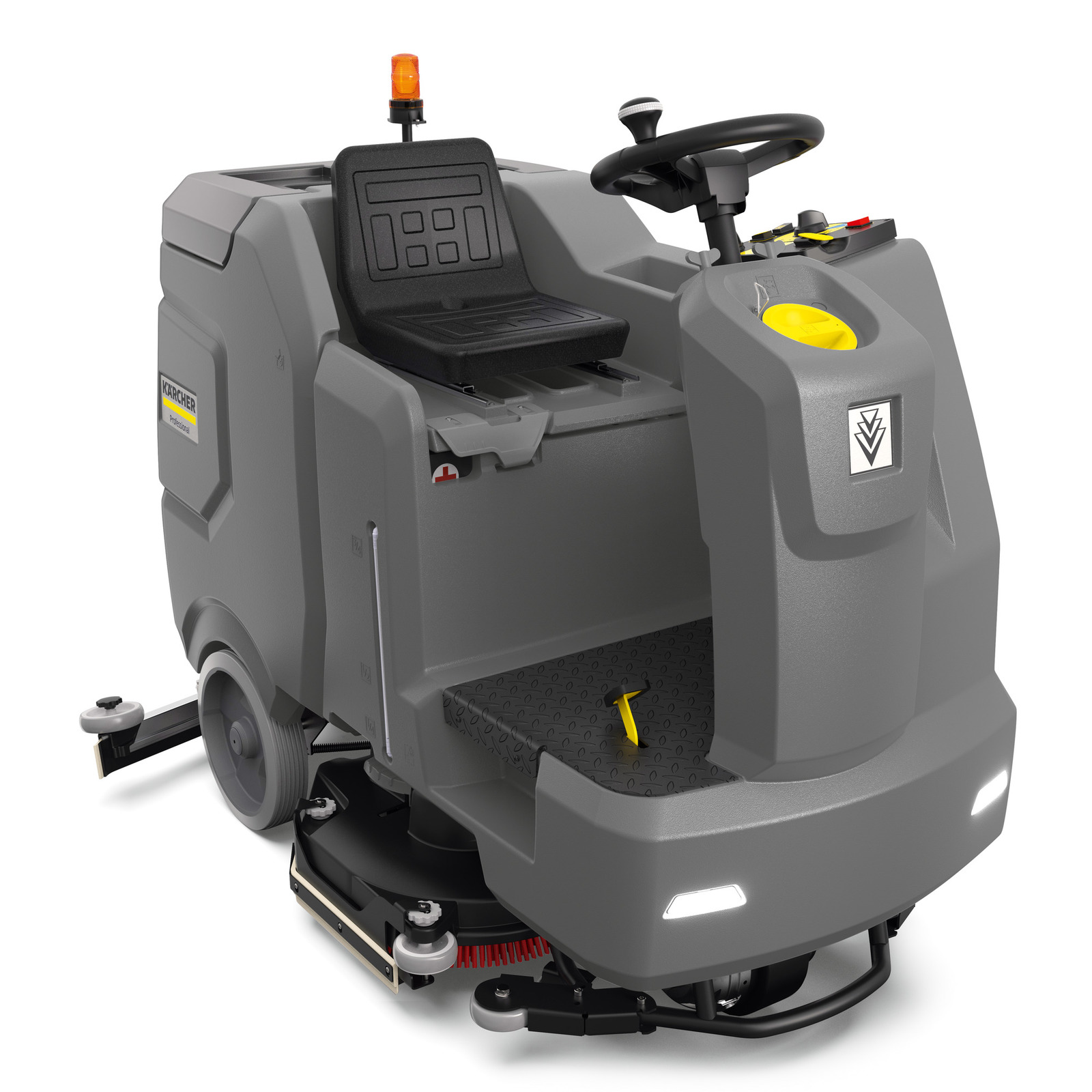

Karcher BD 90/160 R Bp Ride-On Scrubber Drier
- Large battery compartment to hold a 300 Ah battery
- High suction power (700 watts)
- Anti-skid wheels
- Ergonomic design, designed for the Asian market
- Innovative KIK system
- D90 brush head comes as standard
- Equipped with standard squeegee adapter.
- With LED daytime running light
- Stable anti-collision beam.
- Energy-saving eco!efficiency mode

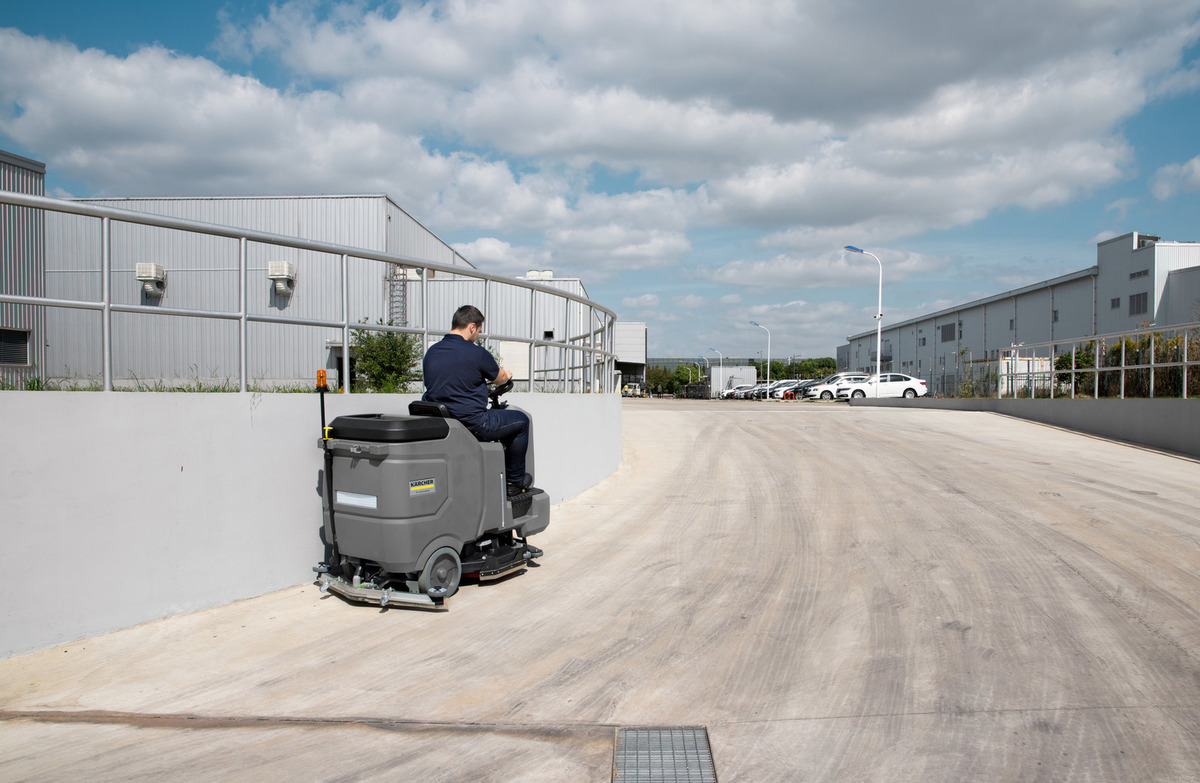

Specially developed for the Asian market, our new battery powered scrubber drier BD 90/160 R Classic Bp convinces with a superb price/performance ratio. With a tank capacity of 160 l, a large battery compartment for 300 Ah batteries and a 90 cm working width, the machine is ideal for cleaning large areas - and 80 kg brush pressure and 700 watts suction power guarantee outstanding cleaning results. In addition, the BD 90/160 R Classic Bp is equipped with our innovative KIK system to protect against incorrect operation. During operation anti-skid wheels guarantee safe driving, while integrated LED and warning lights increase safety for users and in the surrounding area. After operation an automatic, electronic parking brake, as well as the automatic lifting of the brush head and the squeegee, ensure safe downtimes that are gentle on components. Tried-and-tested components guarantee minimal maintenance effort and low service costs.
Features and benefits :

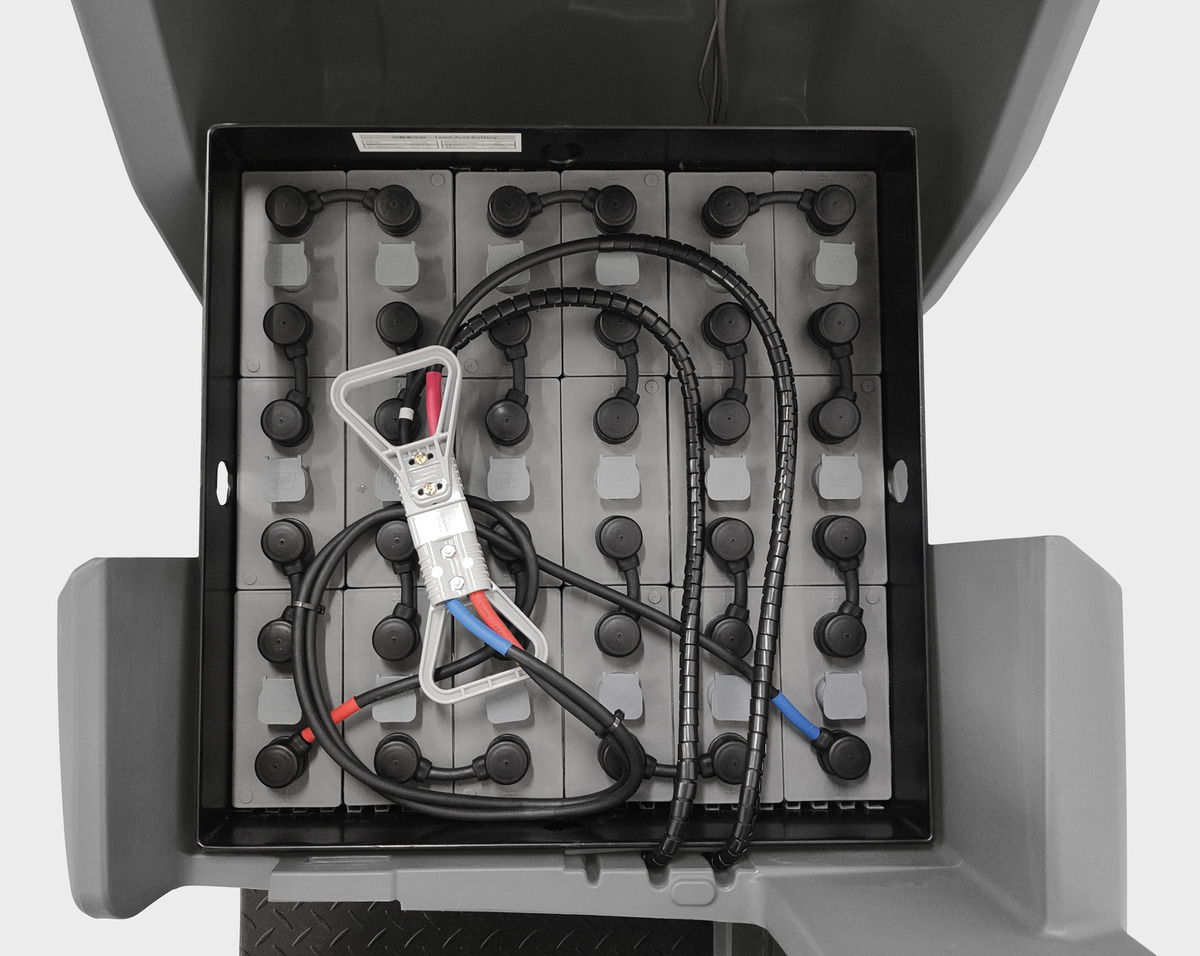

Large battery compartment to hold a 300 Ah battery
Enables uninterrupted work for up to 6 hours. High cleaning performance per battery charge. Maximum productivity.

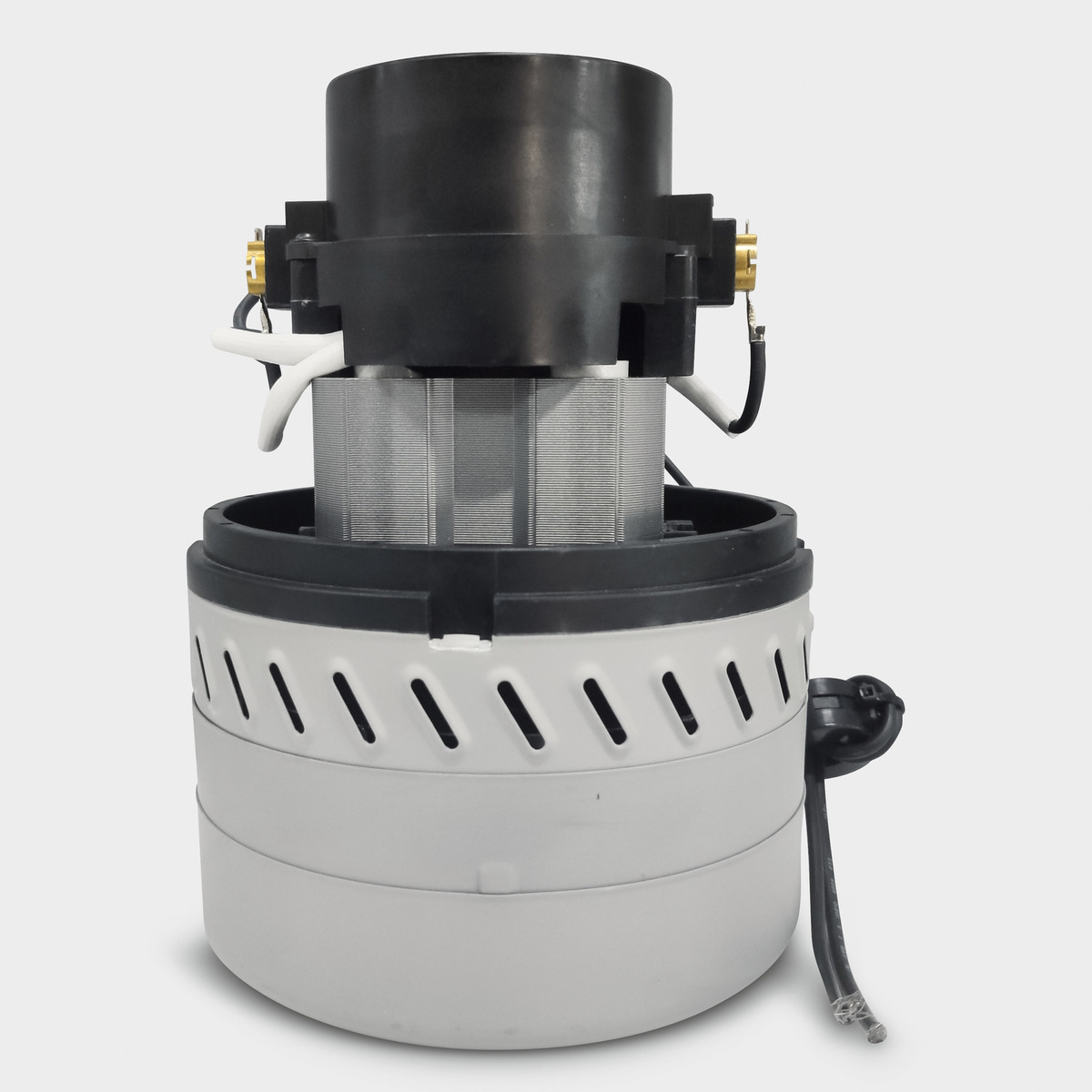

High suction power (700 watts)
Reduces residual water on cleaned areas. High suction power for dry floors. Minimises the risk of slipping on recently cleaned areas.
Anti-skid wheels

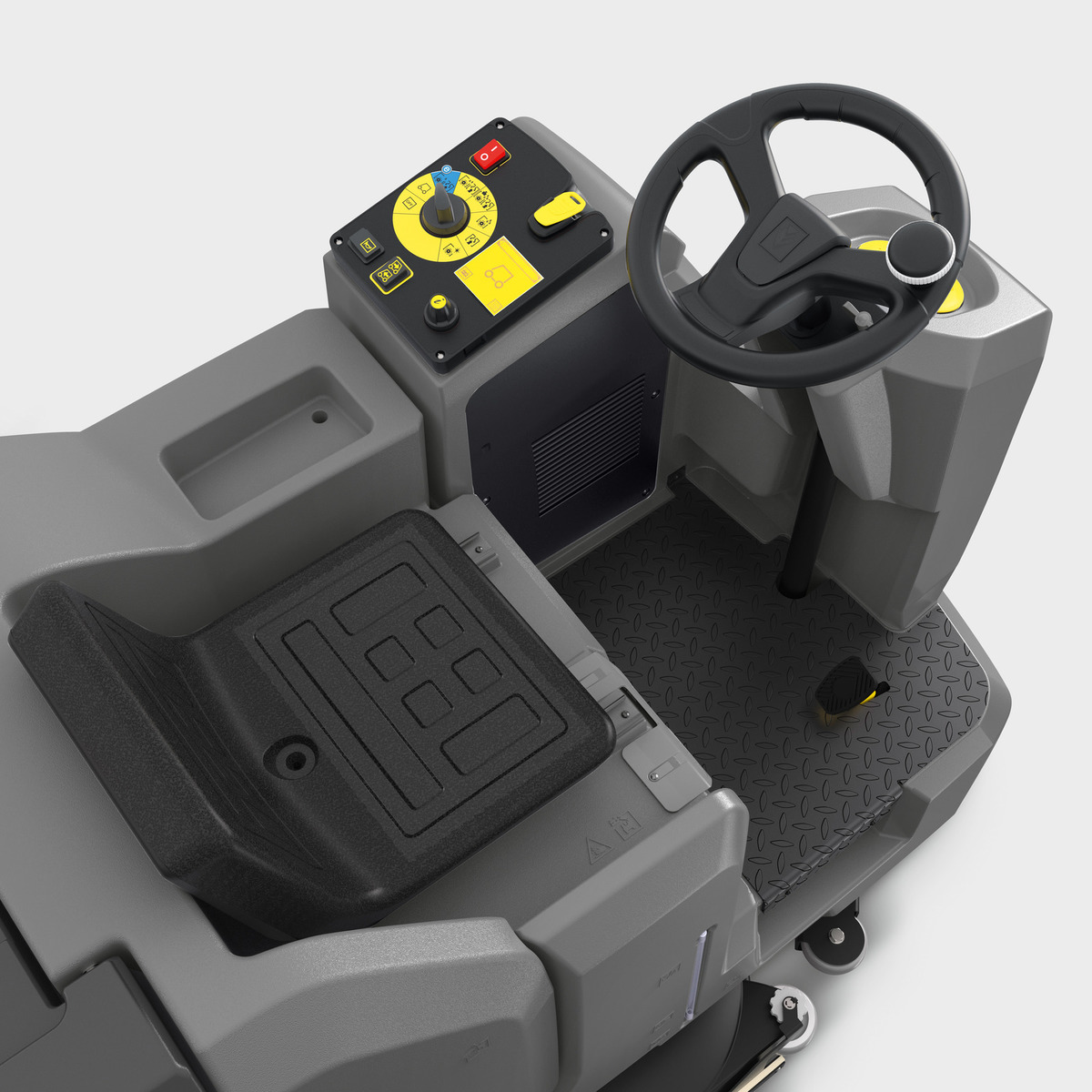

Prevents slipping on wet floors. Increases safety for the user. High reliability.Ergonomic design, designed for the Asian market
- Steering wheel and seat can be adapted to the user.
- Maximum flexibility.
- High working comfort.

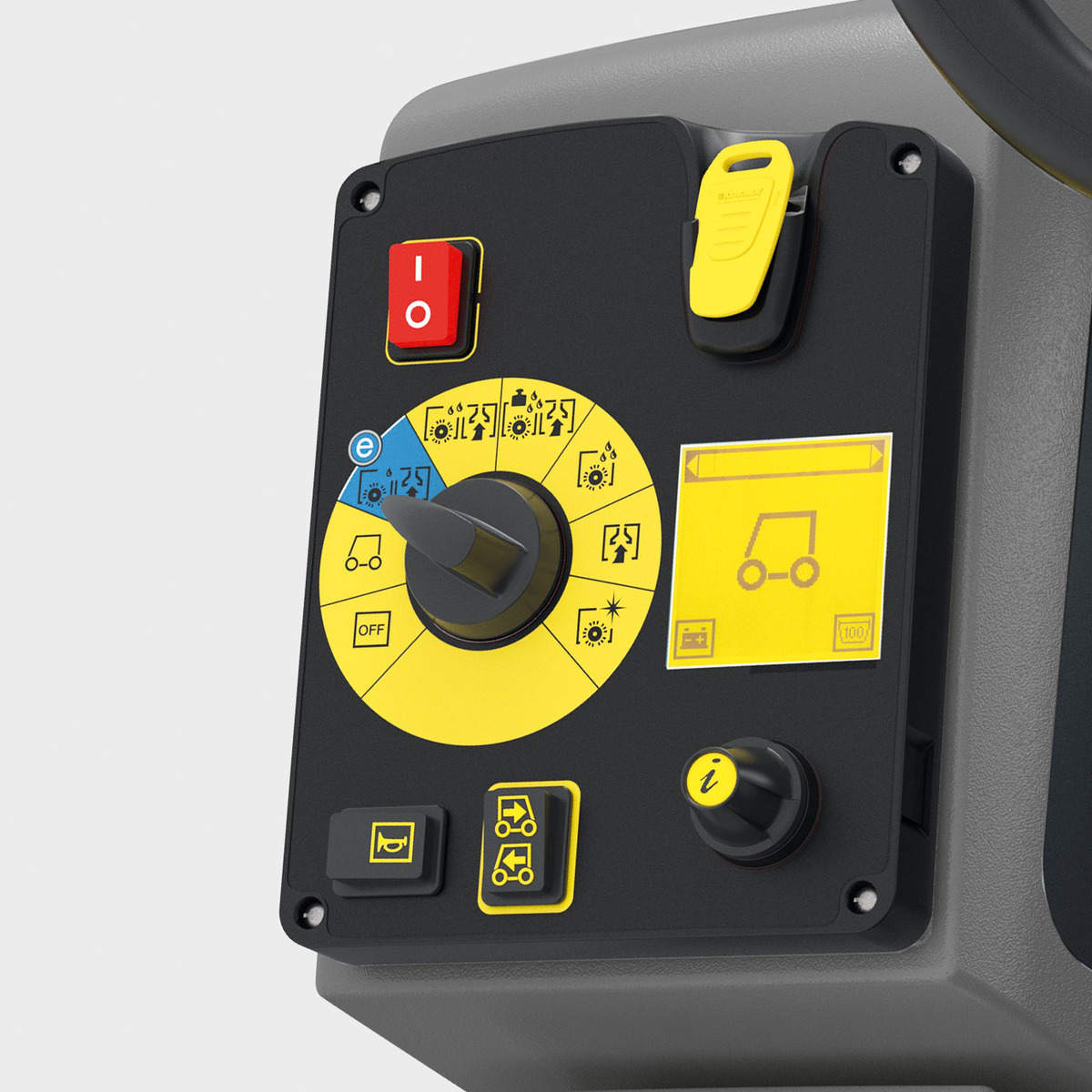

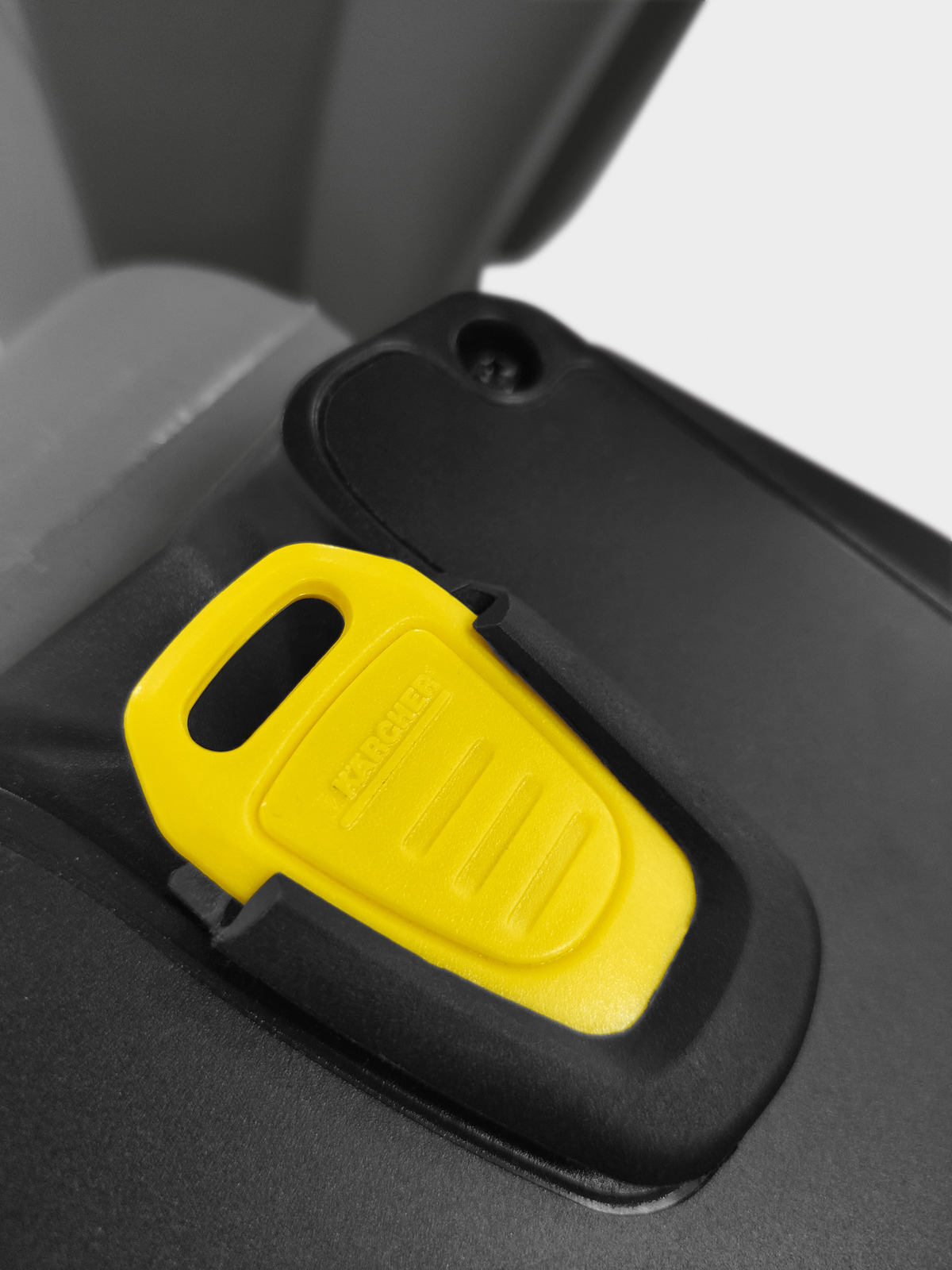

Innovative KIK system
- Great protection against operating errors.
- Prevents unauthorised use.
- Adjustable cleaning tasks without increasing the complexity for the operator.

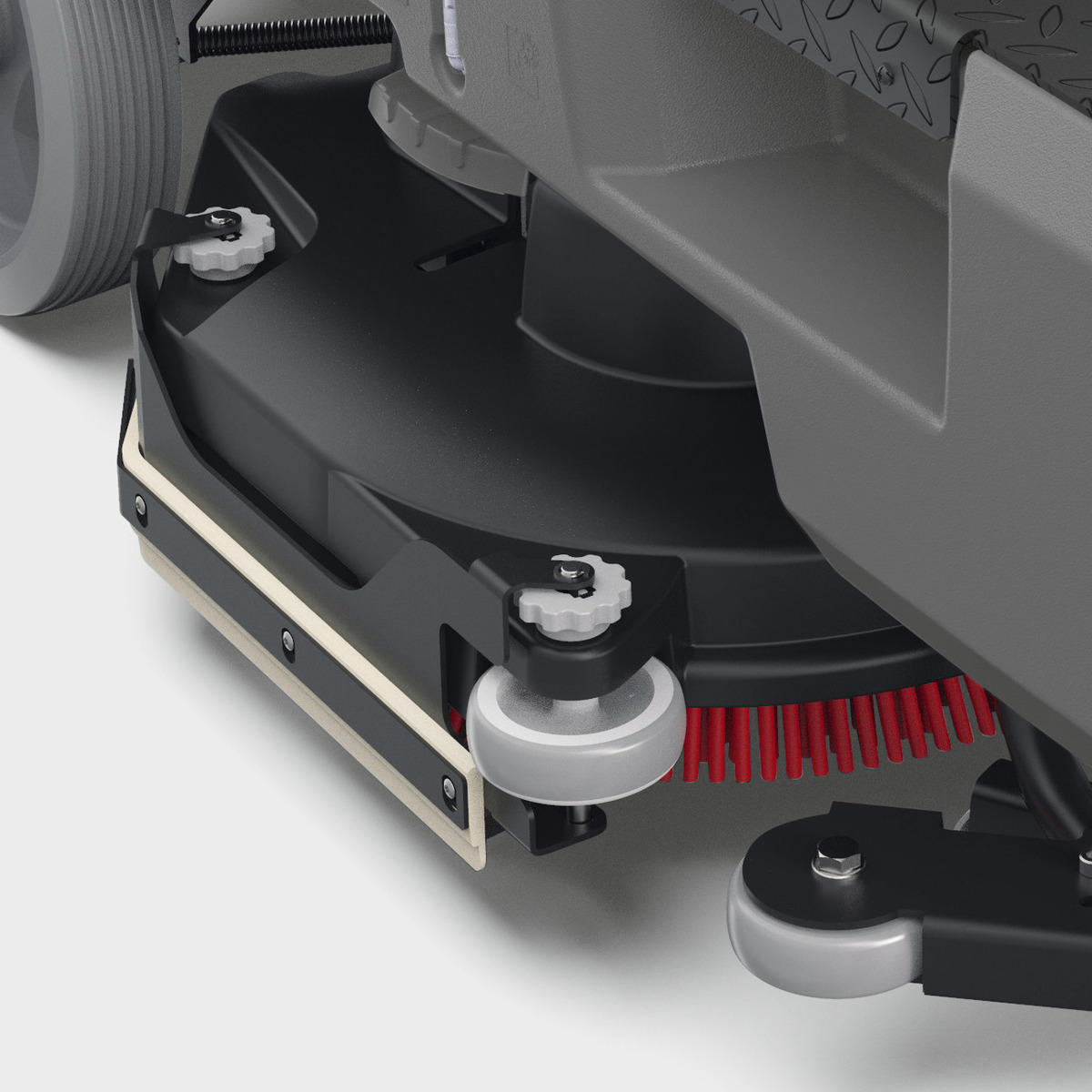

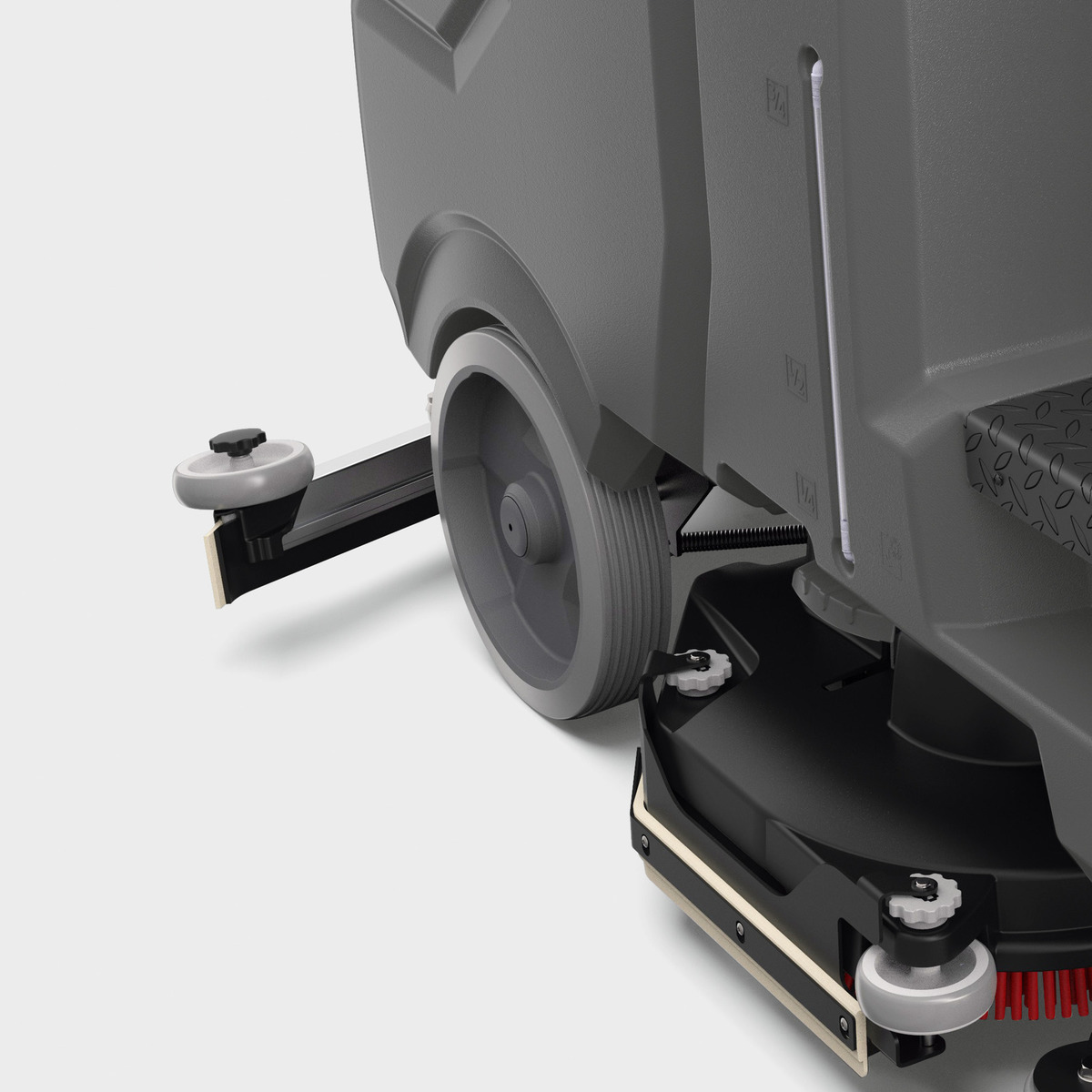

D90 brush head comes as standard
- Brush head with 90 cm working width for large area performances.
- 80 kg brush pressure for excellent cleaning results.
- High cleaning efficiency.

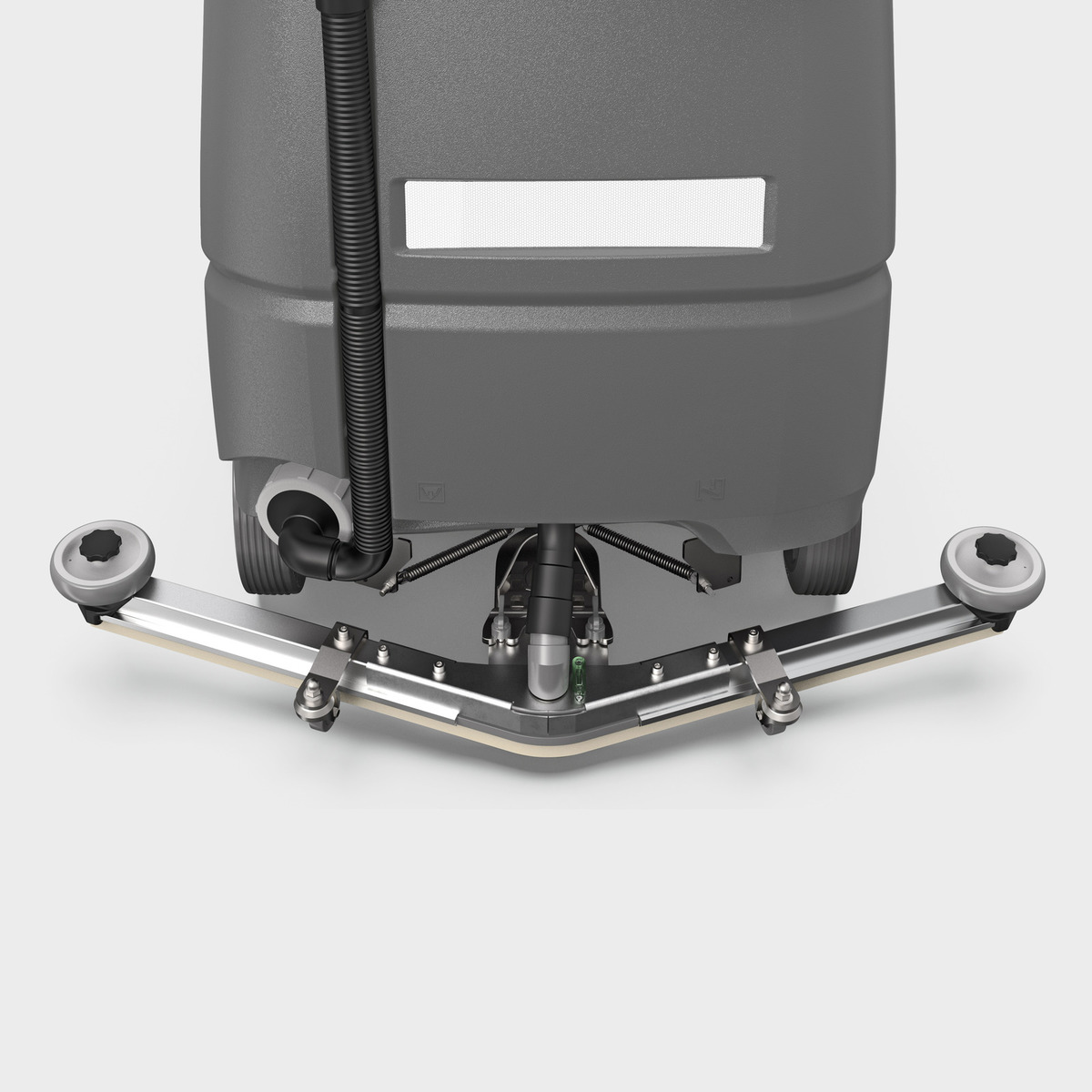

Equipped with standard squeegee adapter.
- Suitable for straight, curve and V squeegees depending on requirements.
- Easy maintenance thanks to tried-and-tested components.
- Low service costs.

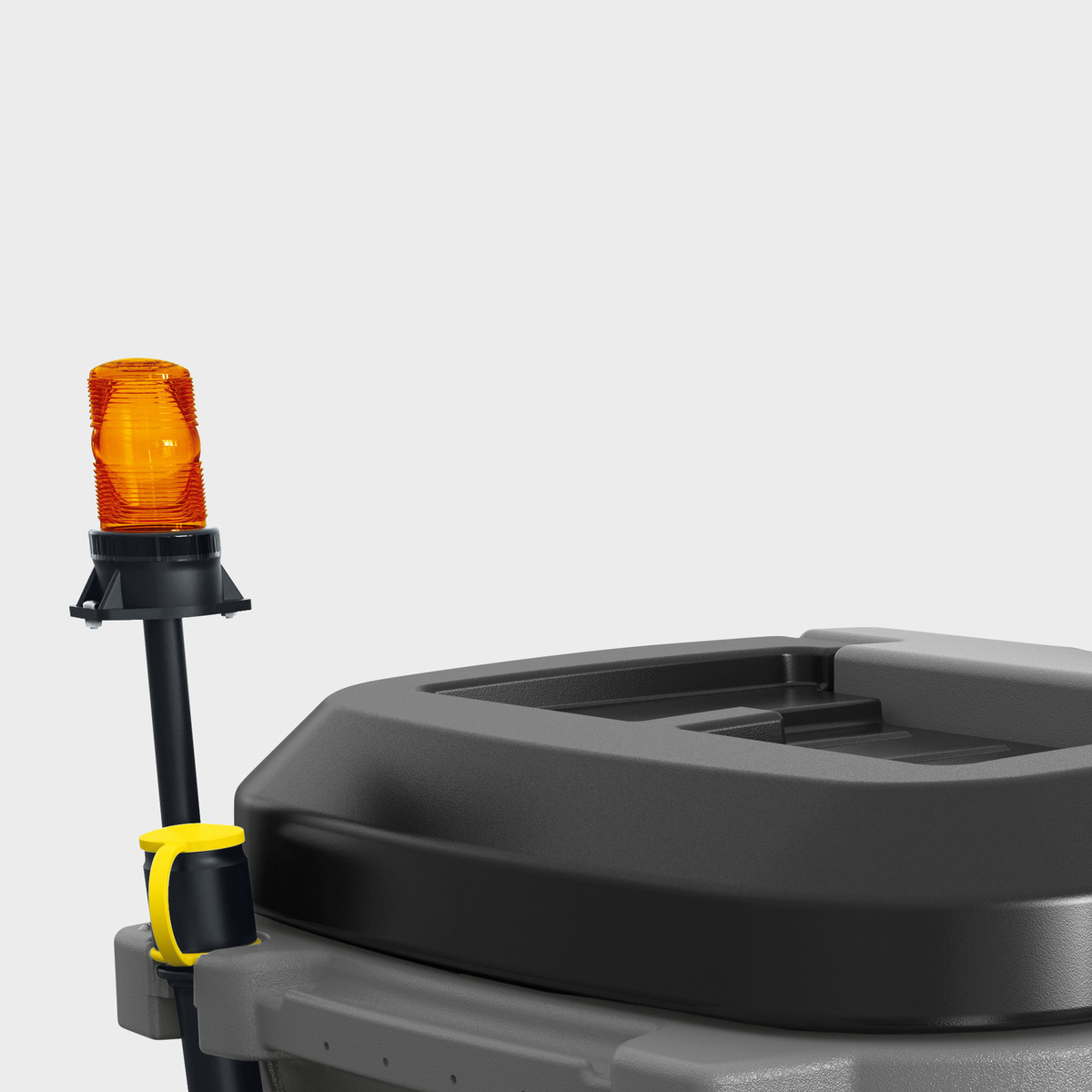

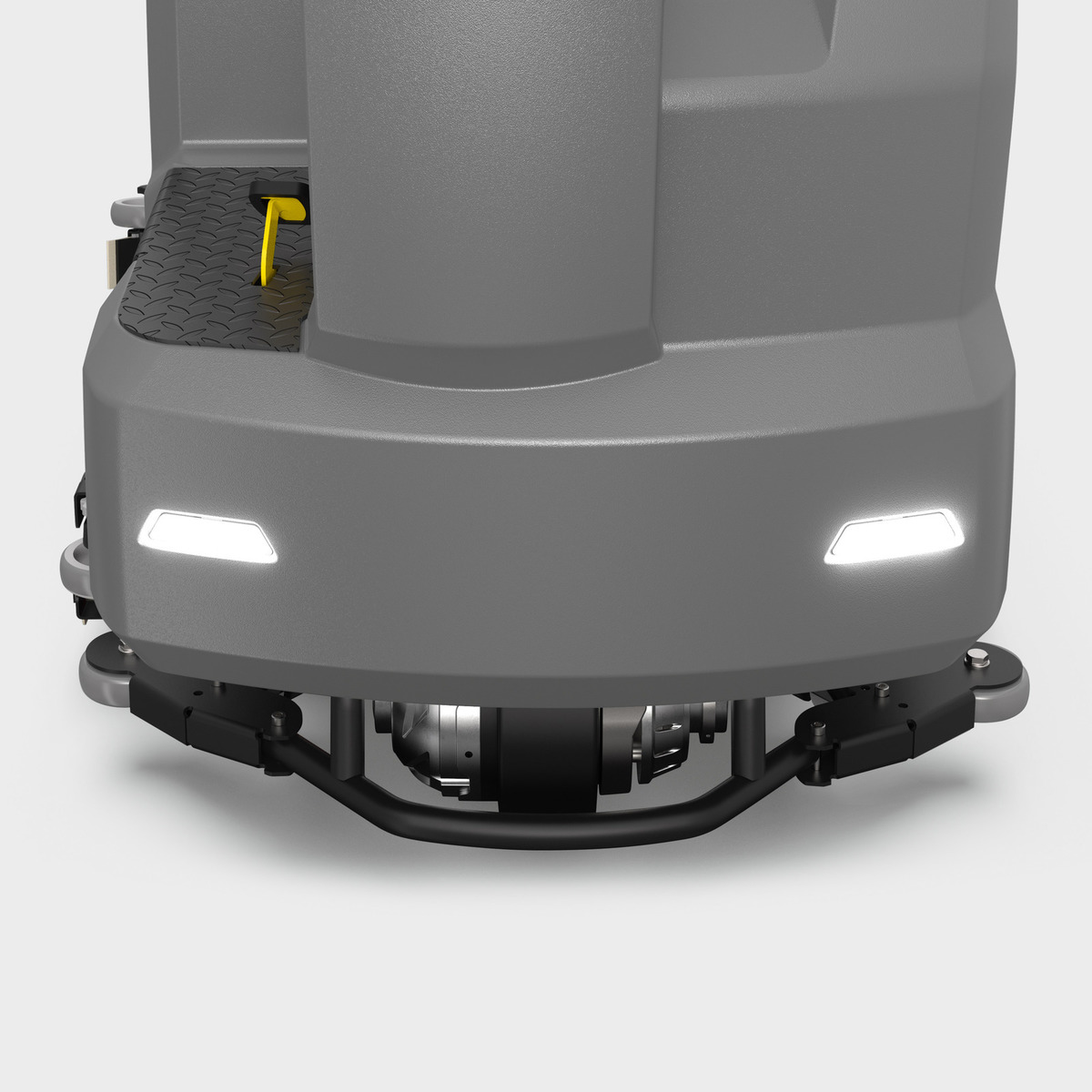

With LED daytime running light
- Also improve vision in the dark.
- Increases visibility during the day.
- Maximum safety for user and in surrounding area.

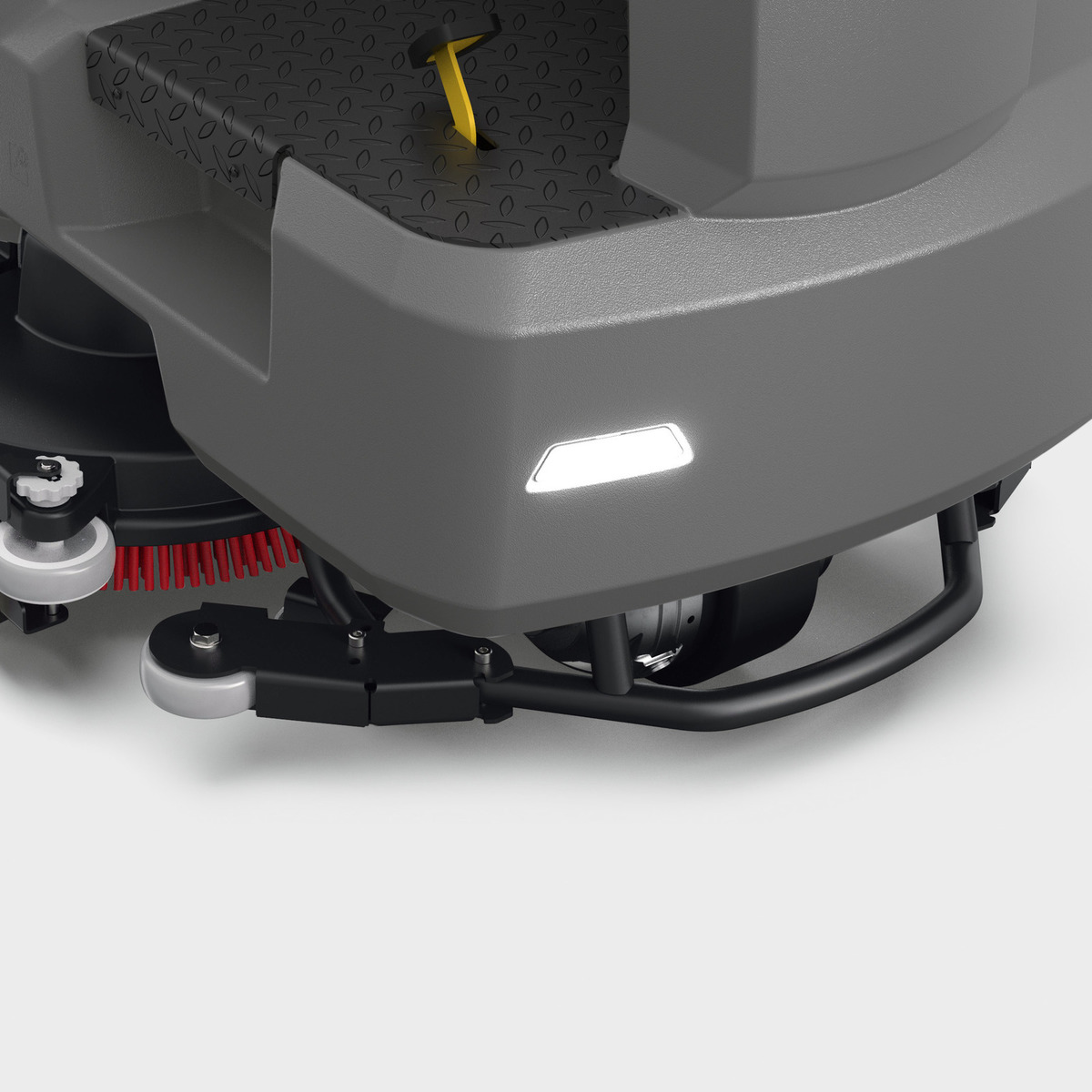

Stable anti-collision beam.
- Increases safety during turning manoeuvres.
- Effectively prevents damage to the tank.
- Effectively prevents damage to the drive.
Energy-saving eco!efficiency mode
- Lowers water requirement during cleaning.
- Lowers battery consumption and increases the runtime.
- Reduces the operating noise for applications in noise-sensitive areas.
Specifications :
Technical data
Drive type Battery Traction drive Brush motor Working width of brushes (mm) 900 Working width, vacuuming (mm) 1200 Tank of fresh/dirty water (l) 160 / 160 Theoretical area performance (m²/h) 5400 Practical area performance (m²/h) 3780 Battery (V/Ah) 36 / 300 Driving speed (km/h) 6 Climbing ability (%) 10 Brush rotational speed (rpm) 100 - 190 Brush contact pressure (kg/g/cm²) 94 / 89 Aisle turning width (cm) 175 Water consumption (l/min) max. 7 Sound pressure level (dB(A)) 67 Rated input power (W) up to 2500 Weight without accessories (kg) 370 Dimensions (L x W x H) (mm) 1740 x 970 x 1445
| Drive type | Battery |
| Traction drive | Brush motor |
| Working width of brushes (mm) | 900 |
| Working width, vacuuming (mm) | 1200 |
| Tank of fresh/dirty water (l) | 160 / 160 |
| Theoretical area performance (m²/h) | 5400 |
| Practical area performance (m²/h) | 3780 |
| Battery (V/Ah) | 36 / 300 |
| Driving speed (km/h) | 6 |
| Climbing ability (%) | 10 |
| Brush rotational speed (rpm) | 100 - 190 |
| Brush contact pressure (kg/g/cm²) | 94 / 89 |
| Aisle turning width (cm) | 175 |
| Water consumption (l/min) | max. 7 |
| Sound pressure level (dB(A)) | 67 |
| Rated input power (W) | up to 2500 |
| Weight without accessories (kg) | 370 |
| Dimensions (L x W x H) (mm) | 1740 x 970 x 1445 |
Scope of supply :
- Disc brush
- Disc brush
Equipment :
- Powerful traction drive
- Automatic water stop
- Parking brake
- Adjustable steering wheel
- Solenoid valve
- 2-tank system
- Powerful traction drive
- Automatic water stop
- Parking brake
- Adjustable steering wheel
- Solenoid valve
- 2-tank system
