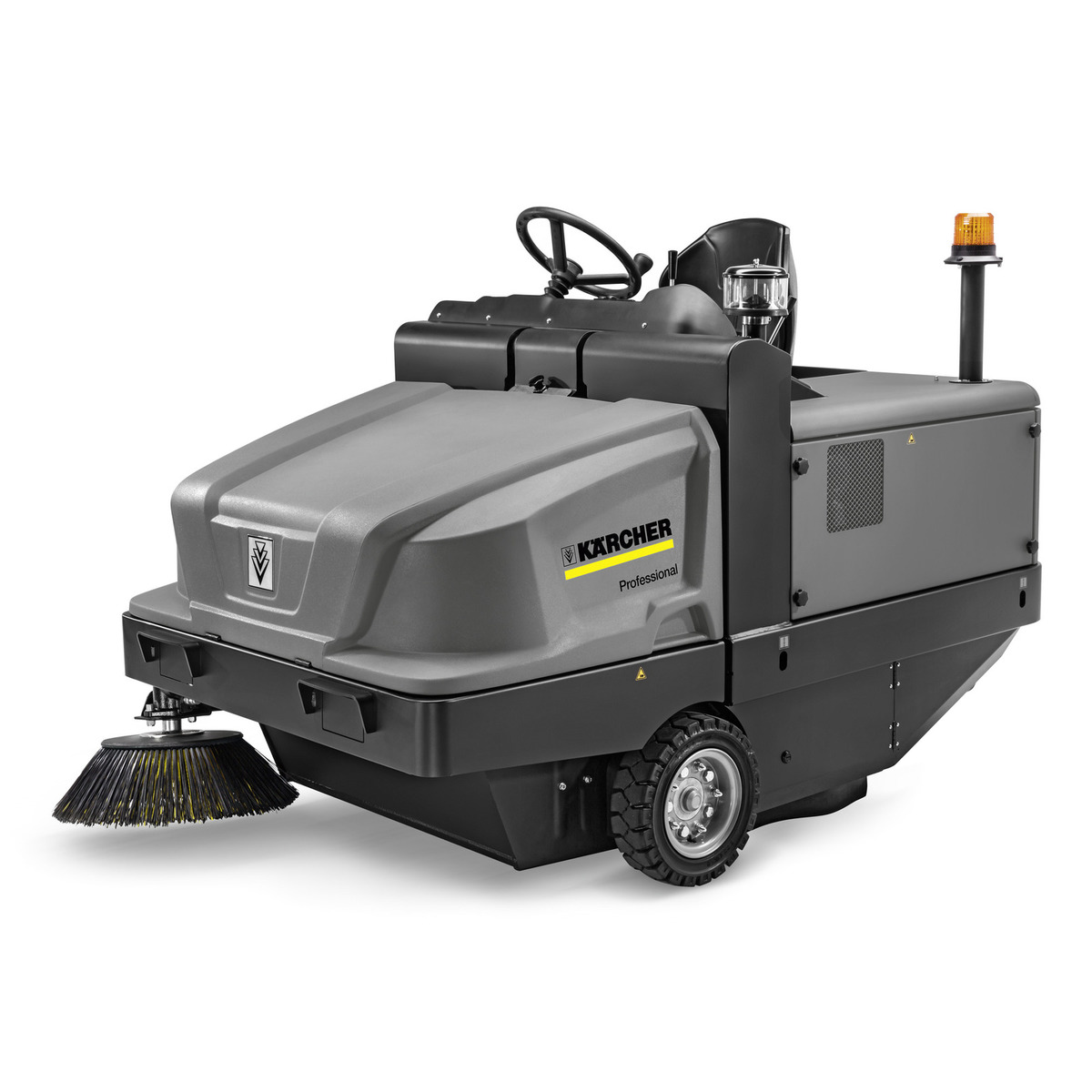

VACUUM SWEEPER KM 120/250 R Bp Classic
- Robust design of the machine for safe work
- Large-area pocket filter with vibration motor
- Simple operation, maintenance and servicing
- Dustpan principle
- Flexible Footprint System
- Hydraulic high container emptying

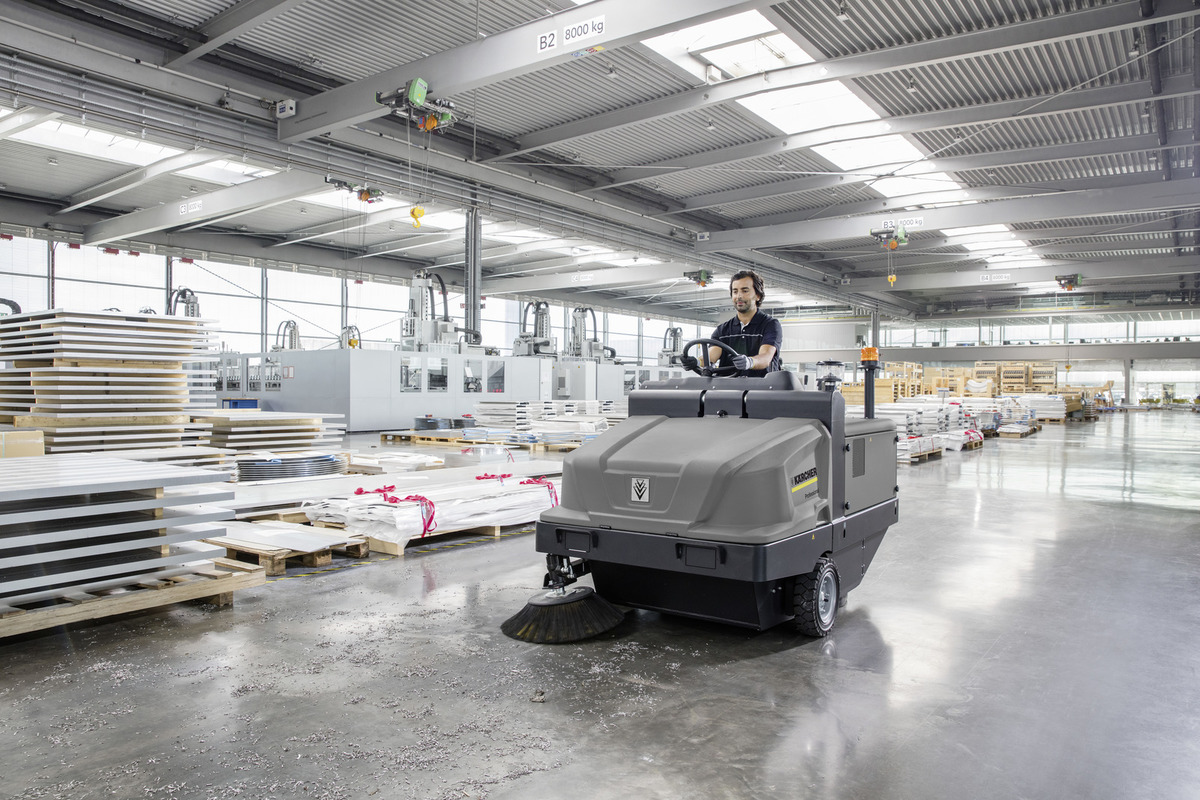

The electric drive in our KM 120/250 R Bp Classic industrial sweeper not only allows emission-free use inside and outside, it is also responsible for the machine's very low operating noise. It is thereby particularly suited to applications in noise-sensitive areas. However, its robust design, the pocket filter with vibration motor for cleaning, the large waste container with convenient hydraulic high container emptying and the resistant solid rubber tyres also make the machine ideal for harsh applications in very dusty environments. Construction companies, the metalworking industry and foundries can benefit significantly from the machine's outstanding performance. The brushes, which adapt perfectly to the ground surface, effortlessly pick up coarse and fine waste. Lastly, the high level of user-, maintenance- and service-friendliness makes this successful concept a practical one.
Features and benefits :
Robust design of the machine for safe work
Permits applications in extreme external conditions. Leads to longer service life of components and machine. Standard flashing beacon increases safety for user and environment.
Large-area pocket filter with vibration motor
The large filter area guarantees dust-free work. Effective filter cleaning by means of vibrating motor. Suitable for particularly large quantities of dust.
Simple operation, maintenance and servicing
Simple technology with tried-and-tested components. Easy access to engine compartment permits fast, simple servicing and maintenance. Main sweeper roller and pocket filter can be replaced without tools.Dustpan principle
- Guarantees good cleaning results also with fine waste.
- Effortless pick-up of coarse waste.
- Low dust production.
Flexible Footprint System
- Excellent sweeping results.
- Low brush wear.
- Optimal adaptation of brushes to different ground/surfaces.
Hydraulic high container emptying
- Simple and safe emptying of waste.
- Convenient tipping up to 1.42 metres.
Specifications :
Technical data
Drive type Electric Traction drive DC motor Drive– performance (V/kW) 36 / 5 Max. area performance (m²/h) 7200 Working width (mm) 900 Working width with 1 side brush (mm) 1200 Working width with two side brushes (mm) 1500 Battery voltage (V) 36 Battery runtime (h) max. 3.5 Waste container (l) 250 Climbing ability (%) 14 Working speed (km/h) 6 Filter areas (m²) 6 Weight (with accessories) (kg) 750 Weight, ready to uset (kg) 1200 Weight incl. packaging (kg) 750 Dimensions (L x W x H) (mm) 2082 x 1250 x 1450
| Drive type | Electric |
| Traction drive | DC motor |
| Drive– performance (V/kW) | 36 / 5 |
| Max. area performance (m²/h) | 7200 |
| Working width (mm) | 900 |
| Working width with 1 side brush (mm) | 1200 |
| Working width with two side brushes (mm) | 1500 |
| Battery voltage (V) | 36 |
| Battery runtime (h) | max. 3.5 |
| Waste container (l) | 250 |
| Climbing ability (%) | 14 |
| Working speed (km/h) | 6 |
| Filter areas (m²) | 6 |
| Weight (with accessories) (kg) | 750 |
| Weight, ready to uset (kg) | 1200 |
| Weight incl. packaging (kg) | 750 |
| Dimensions (L x W x H) (mm) | 2082 x 1250 x 1450 |
Scope of supply :
- Pocket filter
- Wheels, solid rubber
- Pocket filter
- Wheels, solid rubber
Equipment :
- Filter cleaning manual
- Main sweeper roller adjustable
- Main sweeper roller, floating
- Power steering
- Suction volume regulation
- Dustpan principle
- Forwards traction drive
- Backwards traction drive
- Suction
- Hydr. high dump
- Outdoor use
- Indoor use
- Battery indicator
- Elapsed time counter
- Sweeping function, can be switched off
- Side brush, automatically swings out
- Filter cleaning manual
- Main sweeper roller adjustable
- Main sweeper roller, floating
- Power steering
- Suction volume regulation
- Dustpan principle
- Forwards traction drive
- Backwards traction drive
- Suction
- Hydr. high dump
- Outdoor use
- Indoor use
- Battery indicator
- Elapsed time counter
- Sweeping function, can be switched off
- Side brush, automatically swings out
