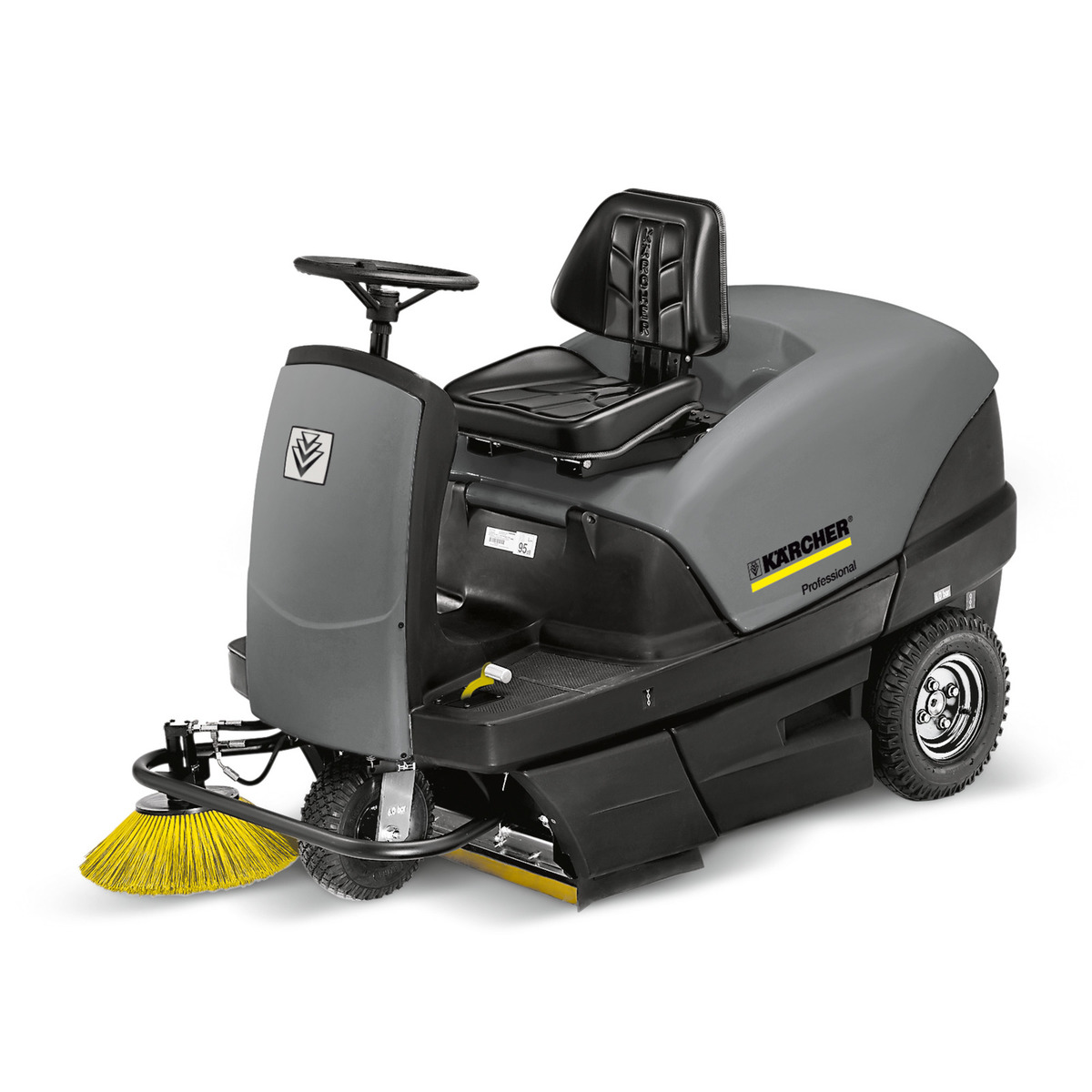

Karcher VACUUM SWEEPER KM 100/100 R Bp

Drive: - 24 V/750 W DC motor - 1 pedal for forward and reverse - small turning radius (3350 mm) - automatic parking brake with vacuum technology - automatic engine cut out when driver leaves seat - effective round filter system with automatic filter cleaning Sweeping/vacuum system: This machine uses the overthrow principle. In other words, the roller brush throws the dirt up and back into the dirt container. The floating roller brush adjusts automatically to uneven surfaces. The filter and roller brush can be replaced without tools. With integrated coarse dirt flap for coarse waste, e.g. cans, split, gravel or wet leaves. The side brush and roller brush are hydraulically driven. A second optional side brush is available. Dirt container: Both 50 litre dirt containers can be removed from the side. Operation: The main roller brush and side brush can be automatically lifted and lowered via a switch. Forward and reverse via one pedal.

Features and benefits :

Impact protection

Protects the sweeper and obstacles within the area being cleaned.

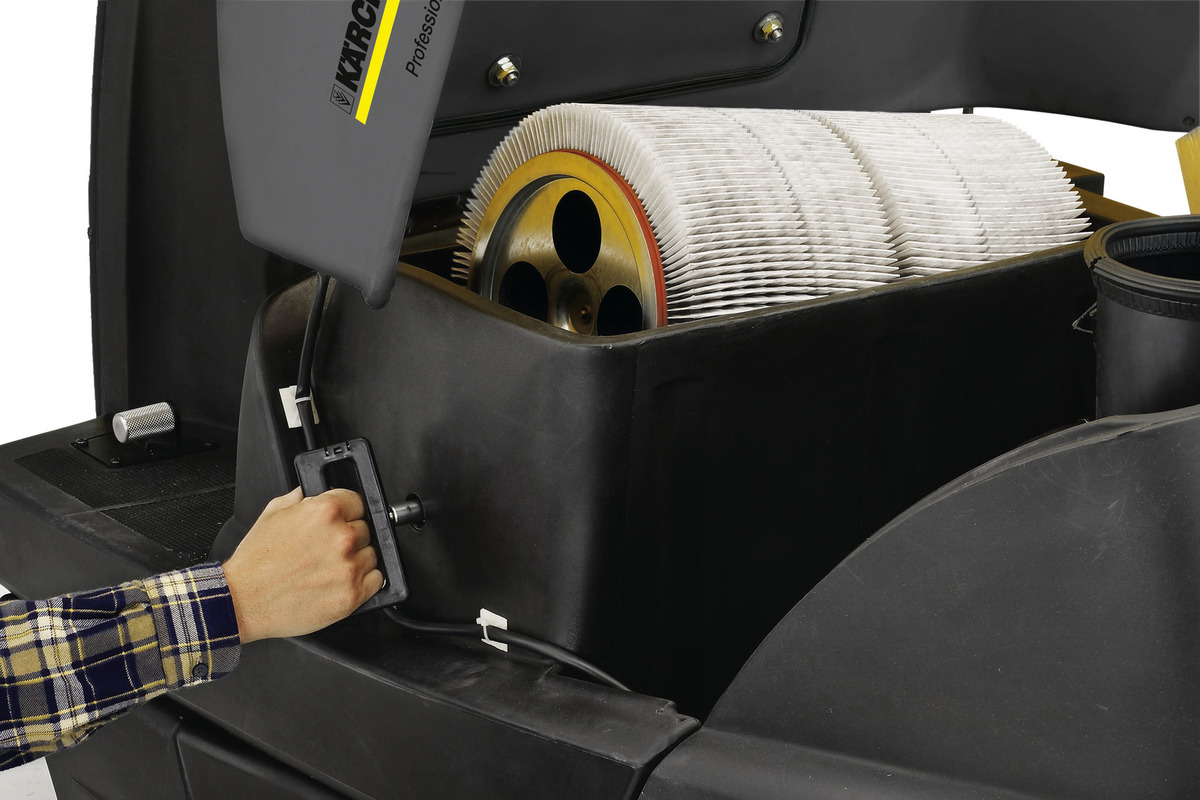

Large filter area with automatic filter cleaning system

The filter is automatically cleaned when the machine is switched off – for continuous low-dust sweeping for long periods of uninterrupted use. Filter cleaning can also take place manually. Filter replacement without tools.

Easy to maintain

Filter and roller brush easy to remove without tools for flexible maintenance.

EASY Operation operating concept

• Clear and logical arrangement of all controls in the handle and field of view for ease of use.
• Standard symbols for all Kärcher sweepers.

Specifications

Technical data

Traction drive	DC motor
Drive– performance (V/kW)	24 / 2.1
Drive type	Electric
Max. area performance (m²/h)	6000
Max. area performance with 2 side brushes (m²/h)	7800
Working width (mm)	700
Working width with 1 side brush (mm)	1000
Working width with two side brushes (mm)	1300
Battery capacity (Ah)	240
Battery voltage (V)	24
Battery runtime (h)	max. 2.5

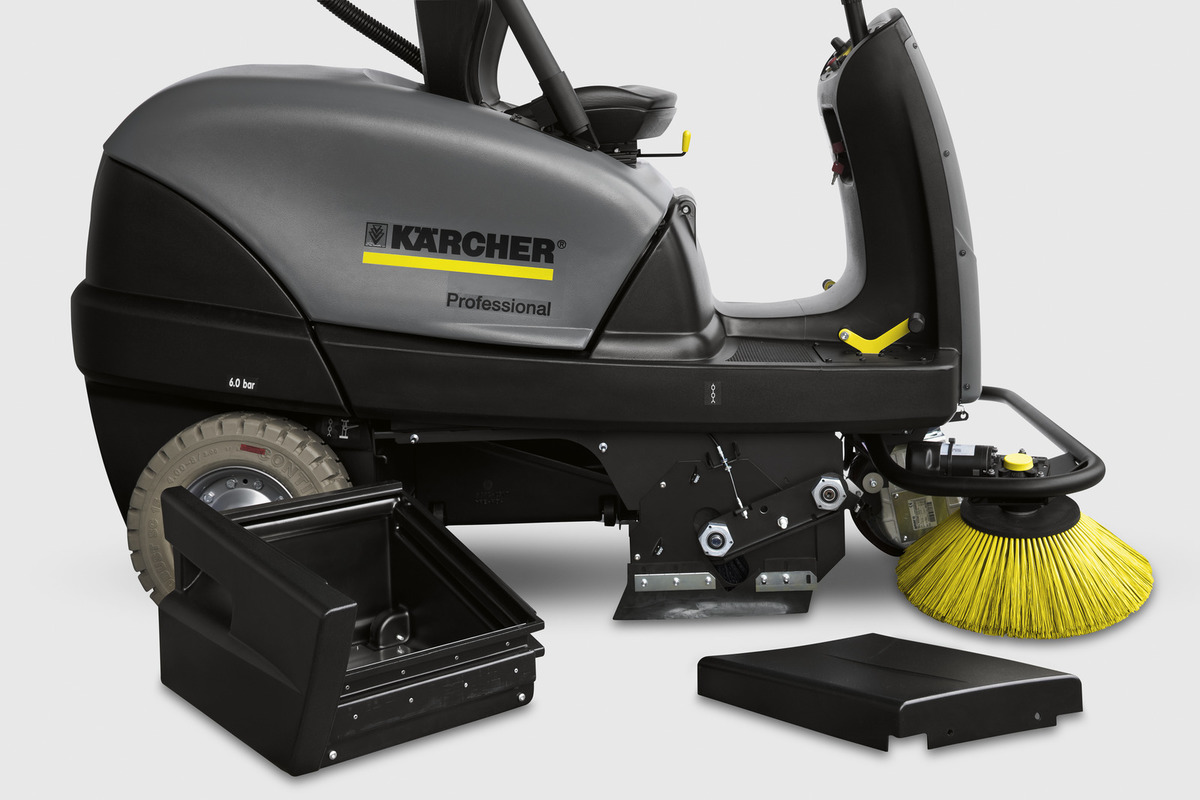

Waste container (l)	100
Climbing ability (%)	15
Working speed (km/h)	6
Filter areas (m²)	6
Weight (with accessories) (kg)	320
Weight, ready to uset (kg)	300
Dimensions (L x W x H) (mm)	2006 x 1005 x 1343

Scope of supply

• Polyester round filter
• Wheels, non-marking

Equipment

• Filter cleaning manual
• Filter cleaning automatic
• Main sweeper roller, floating
• Suction volume regulation
• Coarse dirt flap
• Overhead sweeping principle
• Forwards traction drive
• Backwards traction drive
• Suction
• Outdoor use
• Indoor use
• Battery indicator
• Elapsed time counter
• Sweeping function, can be switched off
