Kennametal

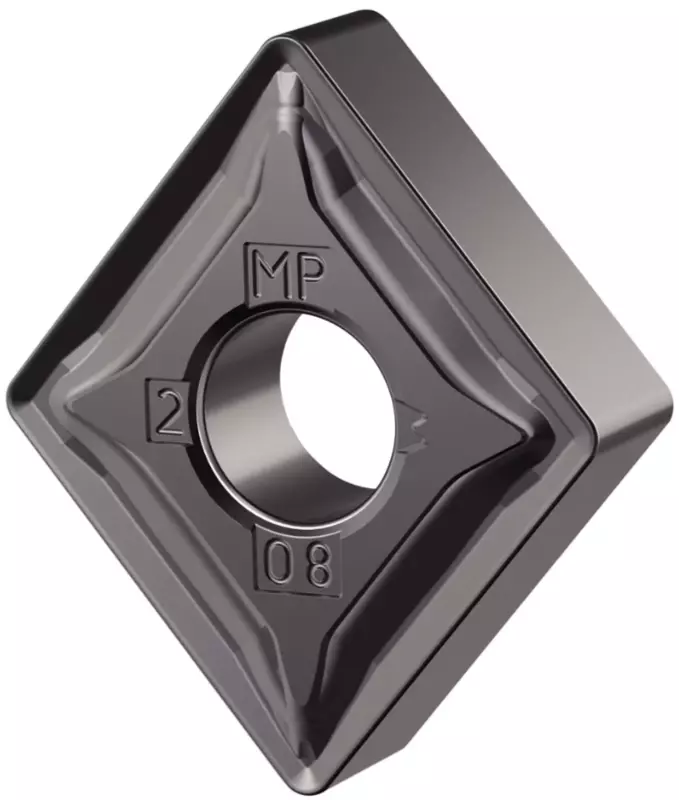

CNMG120412MP KC5010
- ANSI/ISO Turning Insert
- Medium geometry with positive rake face for chip control in difficult materials
- Beyond™ Drive™ grades included
- Workpiece Materials: Steel, Stainless Steel, High-Temp Alloys
SKU - 1832296
₹1,412.00
Customize
In stock:
2
Share:
Product Details
| ISO Catalog ID | CNMG120412MP |
| Grade | KC5010 |
| [D] Insert IC Size | 12.7 mm |
| [D1] Insert Hole Size | 5.16 mm |
| [L10] Insert Cutting Edge Length | 12.896 mm |
| [S] Insert Thickness | 4.76 mm |
| [Rε] Corner Radius | 1.2 mm |
KC5010 :
Composition: An advanced PVD AlTiN coating over a very deformation-resistant unalloyed carbide substrate. The new and improved coating enables speeds to be increased by 50–100%.
Application: The KC5010 grade is ideal for finishing to general machining of most workpiece materials at higher speeds. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.
