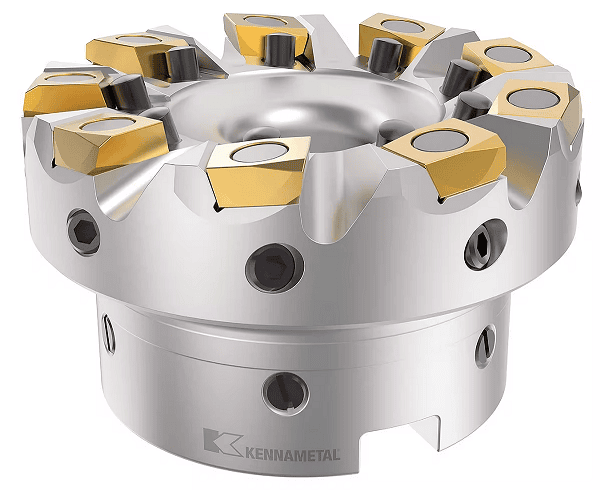

Kennametal 100B08RP00MD10CF Indexable Shell Mill Cutter
The Kennametal 100B08RP00MD10CF (MPN: 1893754) is a high-rigidity 100mm indexable shell milling body engineered for high metal removal rates (MRR) across roughing, face milling, and profiling applications. Featuring an 8-tooth configuration with optimized insert seat placement, this tool delivers exceptional thermal stability, chatter resistance, and smooth chip flow in demanding shop-floor operations.
- Cutter Diameter: 100 mm
- Flute/Teeth Count: 8 Inserts
- Mounting Style: Shell Mill / Arbor Type B
- Internal Coolant: Through-coolant capable for superior heat control and chip evacuation
- Authorized Supplier: Mactech Engineers, India
Customize
Product Details
Designed for heavy-duty metal removal and precise finish cuts, the Kennametal 100B08RP00MD10CF indexable shell mill cutter (Material ID / MPN: 1893754) provides exceptional cutter body durability and operational efficiency. Built to withstand high cutting forces on CNC vertical and horizontal machining centers, this tool is an ideal choice for shop floors demanding long tool life and minimal spindle down-time.
Key Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand | Kennametal |
| Order Code / Model | 100B08RP00MD10CF |
| MPN / Material Number | 1893754 |
| Cutter Diameter (D1) | 100 mm |
| Number of Insert Pockets (Z) | 8 |
| Mounting Type | Arbor / Shell Mill Mount (Type B) |
| Coolant Channel | Internal Through-Coolant Delivery |
| Application Type | Face Milling, Profiling, Roughing & Medium Finishing |
Performance & Design Advantages
- High Dynamic Rigidity: Premium tool steel construction minimizes deflection under high feed rates, extending edge life and protecting spindle bearings.
- Optimized Pocket Geometry: Secure insert clamping system eliminates insert micro-movement, ensuring dimensional consistency across long production runs.
- Targeted Chip Evacuation: Dedicated internal coolant channels deliver direct fluid flow to the active cutting zone, clearing chips rapidly and reducing thermal stress.
- Versatile Material Range: Proven performance across ISO Material Groups P (Steel), M (Stainless Steel), K (Cast Iron), and S (High-Temp Alloys).
Industrial Applications
The Kennametal 100B08RP00MD10CF is heavily utilized in general engineering, automotive manufacturing, aerospace components, and heavy equipment fabrication where reliable stock removal and surface integrity are mandatory.
Sourced from Mactech Engineers, India
As a trusted industrial supplier, Mactech Engineers provides genuine Kennametal tooling solutions across India. We offer complete technical guidance, cutter selection assistance, and quick delivery to keep your CNC machining operations running at peak efficiency.
