- SAP Material Number - 2439449
- ISO Catalog Number - DVONR2020K16KC04

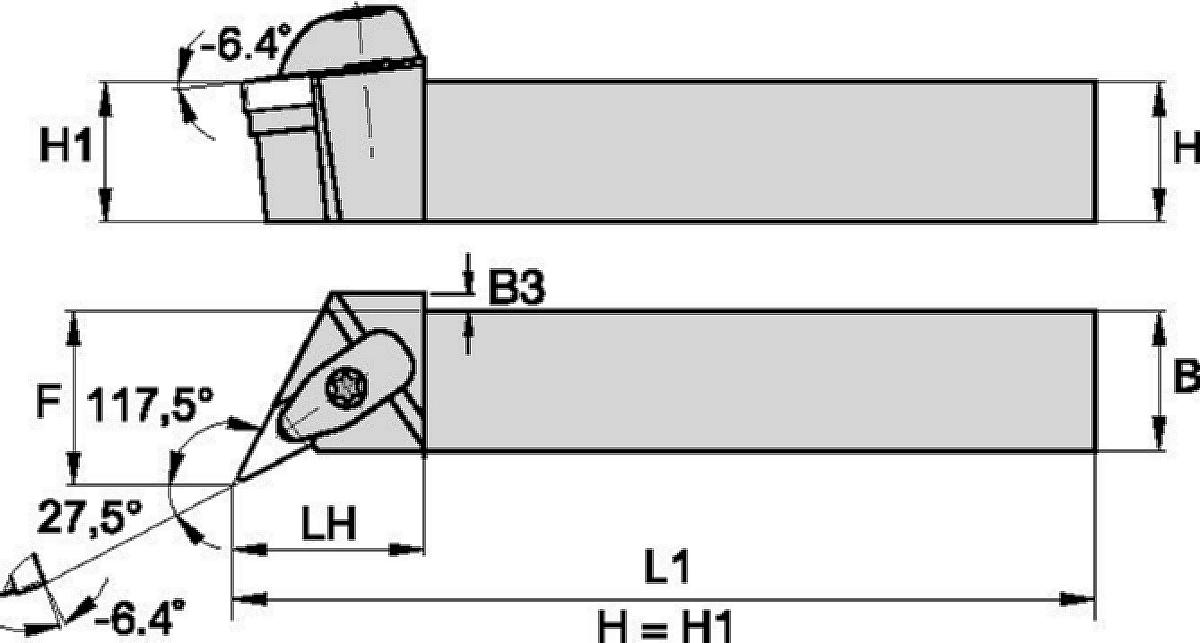

- [H] Shank Height - 20.0000
- [B] Shank Width - 20.0000
- [F] F Dimension - 27.0000
- [L1] Tool Length - 125.0000
- [LH] Head Length - 38.0000
- [B3] Head Back Offset - 5.0000
- Gage Insert VN.. 160408
- Lock Pin ID Drive Size - 9 IP
- Shim Screw ID Drive Size - 15 IP
- Clamp Screw ID Drive Size - 15 IP
Customize
Available Offer
